Available in Emergency Lighting version with built in battery.

Aura Lunaria RE 595x595 3400 DALI DT8 TW 827-860

Article number 37828903420

Recessed, pendant
Offices, school, hospitals, corridors, public areas
On/Off, DALI, ActiveAhead, Casambi, integrated sensor
Design Patterns, A-, E- and Ds-ceiling, UGR 19
IP20/44, CLO, 3000/4000K, TW, CRI 80, CRI 90

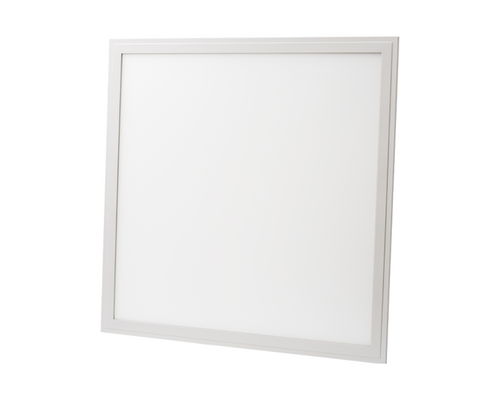

Aura Lunaria is a premium LED panel with a wide range of models and dimensions adapted for all applications. It has a large selection of accessories for tailor-made design and functionality and is also highly flexible, with different lumen packages, color rendering index and control options. It is for example available in Tunable White version as well as with ActiveAhead and Casambi.

Specification

- Product feature
- Feature DALI DT8
- Material of housing Aluminium
- Material of diffuser PC
- Diffuser/cover Microprism
- Light source Integrated LED
- Color White
- Compliance CE; REACH

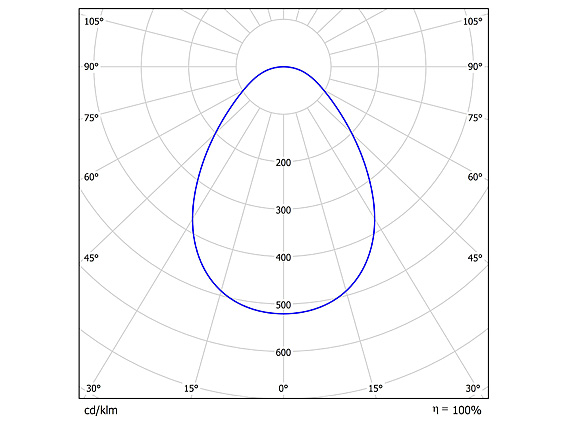

- Photometric data
- Color T (K) Tunable white
- Color Temp Range 2700K – 6000K
- Color Rendering Index (CRI) ≥80
- Unified Glare Rating (UGR) ≤19
- Efficacy (lm/W) 106
- Flux (lm) 3400
- SDCM ≤3
- Installation data
- Mounting Recessed
- Connection Cable
- Cable entries 1
- Through wiring, looping Looping
- Technical data
- IP class IP44
- IK class IK06
- Ambient temp, min +10°C
- Ambient temp, max +30°C
- Calculated LED lifetime, L70 (h) > 100 000
- Calculated LED lifetime, L80 (h) > 100 000
- Driver lifetime, hours 100 000
- Electrical data
- Frequency (Hz) 0/50-60
- Voltage (V) 220-240
- Isolation Class 2
- Power (W) 32
- Standby power (W) 0.5
- Qty per B16 MCB 36
- Qty per C10 MCB 37
- Qty per C16 MCB 61
- Power factor ≥0.90

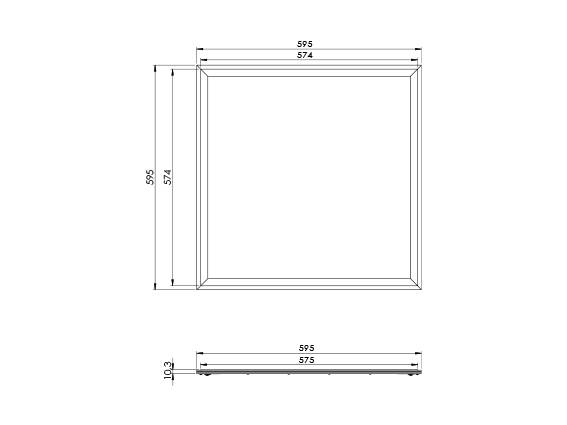

- Measurements
- Length (mm) 595
- Height/depth (mm) 10
- Width (mm) 595
- Net weight, kg 2.8
