Sevede PE L1700 MP 50/50 48W 6100 Casambi without sensor 840 White

Article number 26218406159

Pendent
Office, corridors, schools
Different lengths and optics
DALI, Pull Dim, ActiveAhead-2, Casambi
Customized system luminaire as special request

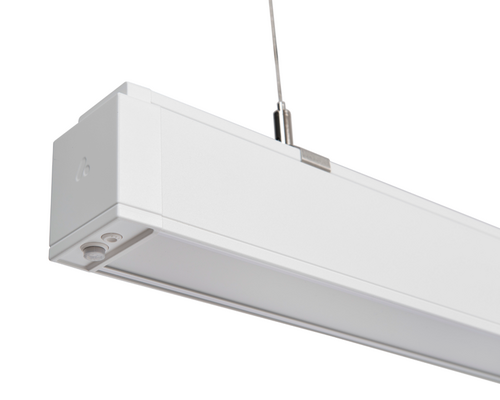

Sevede is our linear premium solution for office lighting. Available in white or black and two lengths as standard. Unique is that you can create a homogeneous light line in desired length. Available in four types of optics: opal, micro prismatic, lens and lens asymmetric optics. Body made of recycled aluminum developed in the Nordics. Available with ActiveAhead or Casambi. Wire suspension delivered with luminaire is adjustable up to 1000mm.

Specification

- Product feature
- Feature Casambi
- Material of housing Recycled aluminium
- Diffuser/cover Microprism
- Light source Integrated LED
- Color White
- Compliance CE
- Photometric data
- Color T (K) 4000
- Color Rendering Index (CRI) ≥80
- Unified Glare Rating (UGR) ≤19
- Efficacy (lm/W) 131
- Flux (lm) 6270
- SDCM ≤3
- Installation data
- Mounting Pendant
- Connection Cable
- Cable entries 1
- Length cable (m) 2.5
- Material cable Plastic non-PVC
- Technical data
- IP class IP20
- Ambient temp, min +10°C
- Ambient temp, max +35°C
- Calculated LED lifetime, L80 (h) 100 000
- Driver lifetime, hours 100 000
- Electrical data
- Frequency (Hz) 0/50-60
- Voltage (V) 220-240
- Isolation Class 1
- Power (W) 48
- Standby power (W) 0.5
- Qty per B16 MCB 18
- Qty per C10 MCB 19
- Qty per C16 MCB 31
- Power factor ≥0.95

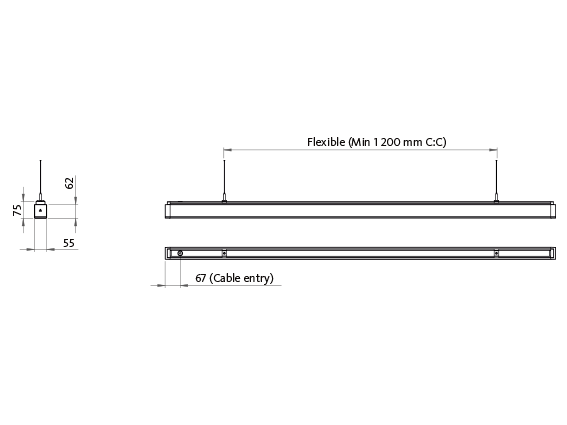

- Measurements
- Length (mm) 1723
- Height/depth (mm) 75
- Width (mm) 55
- Net weight, kg 4.2

Sevede PE L1700 MP 50/50 48W 6100 Casambi without sensor 840 White

Specification

Downloads

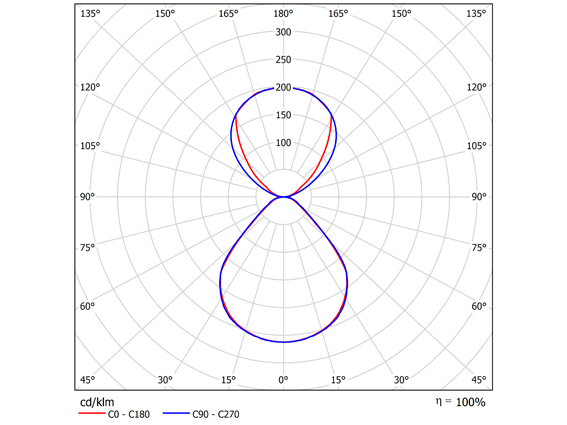

Light distribution
