Kvill PE

See variants >>
  • Pendant
  • Office, corridor, public area
  • 3 different sizes. Separate uplight.
  • DALI, on/off, ActiveAhead, Casambi (special request)
  • IP20

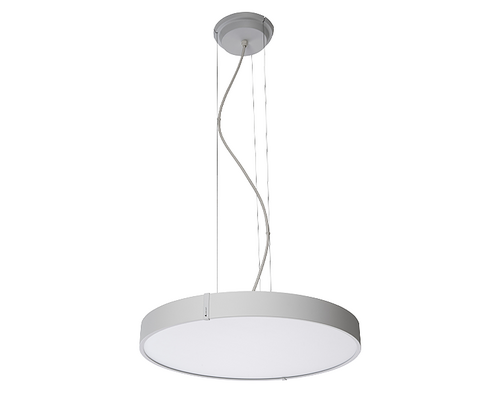

Kvill Pendant is a product offering the latest technology as well as first-class optics combined in a graceful, modern design. This is a solid and well-designed luminaire, designed and developed by our team in Vimmerby, meant for long-lasting function. Kvill Pendant have a separate light module for the indirect lighting. It is available in white and grey as standard and in three different sizes. This product comes with an adjustable 250 - 5000mm wire suspension kit. Kvill is also available ceiling mounted.

    • Technical data
    • IP class IP20
    • IK class IK03
    • Ambient temperature, min +10°C
    • Ambient temperature, max +30°C
    • Calculated LED lifetime, L70 (h) > 100 000
    • Calculated LED lifetime, L80 (h) 100 000
    • Driver lifetime, hours 100 000
    • Installation Data
    • Connection Terminal block 5x2.5
    • Cable entries 3
    • Mounting Pendant
    • Product feature
    • Material of housing Aluminum
    • Diffuser/cover Opal; Microprism
    • Light source Integrated LED
    • Approvals, declarations and certifications
    • Compliance CE
    • Guarantee, years 5
    • Photometric data
    • SDCM ≤3
    • Color Rendering Index (CRI) ≥80
  • Kvill OP PE. Light distribution PE 20/80.

    Kvill OP PE. Light distribution PE 20/80.

Find the product/article that you are looking for.

Use the filter function below to find a specific article. Click on the article to go to the article page or save as a pdf by tick in the box and "ADD AS PDF.

Product name & art.no
Product name & art.no
System power (W)
System power (W)
Color Temp (K)
Color Temp (K)
Luminous flux (lm)
Luminous flux (lm)
Luminaire efficacy (lm/W)
Luminaire efficacy (lm/W)
Diameter, mm
Diameter, mm
LDT Files
LDT Files
15 3000 1960 131 400 Download document
21 3000 2740 130 400 Download document
15 4000 2070 138 400 Download document
21 4000 2940 140 400 Download document
15 3000 1810 121 400 Download document
21 3000 2540 121 400 Download document
15 4000 1920 128 400 Download document
21 4000 2730 130 400 Download document
15 3000 1960 131 400 Download document
21 3000 2740 130 400 Download document
15 4000 2070 138 400 Download document
21 4000 2940 140 400 Download document
15 3000 1810 121 400 Download document
21 3000 2540 121 400 Download document
15 4000 1920 128 400 Download document
21 4000 2730 130 400 Download document
25 3000 3470 139 550 Download document
40 3000 5370 134 550 Download document
25 4000 3720 149 550 Download document
40 4000 5770 144 550 Download document
25 3000 3230 129 550 Download document
40 3000 5010 125 550 Download document
25 4000 3470 139 550 Download document
40 4000 5370 134 550 Download document
25 3000 3470 139 550 Download document
40 3000 5370 134 550 Download document
25 4000 3720 149 550 Download document
40 4000 5770 144 550 Download document
25 3000 3230 129 550 Download document
40 3000 5010 125 550 Download document
25 4000 3470 139 550 Download document
40 4000 5370 134 550 Download document
46 3000 6760 147 750 Download document
63 3000 8920 142 750 Download document
46 4000 7270 158 750 Download document
63 4000 9640 153 750 Download document
46 3000 6270 136 750 Download document
63 3000 8280 131 750 Download document
46 4000 6740 147 750 Download document
63 4000 8950 142 750 Download document
46 3000 6760 147 750 Download document
63 3000 8920 142 750 Download document
46 4000 7270 158 750 Download document
63 4000 9640 153 750 Download document
46 3000 6270 136 750 Download document
63 3000 8280 131 750 Download document
46 4000 6740 147 750 Download document
63 4000 8950 142 750 Download document
15 3000 1960 131 400 Download document
15 3000 1960 131 400 Download document
19 3000 1960 103 400 Download document
19 3000 1960 103 400 Download document
21 3000 2740 130 400 Download document
21 3000 2740 130 400 Download document
15 4000 2070 138 400 Download document
15 4000 2070 138 400 Download document
19 4000 2070 109 400 Download document
19 4000 2070 109 400 Download document
21 4000 2940 140 400 Download document
21 4000 2940 140 400 Download document
15 3000 1810 121 400 Download document
15 3000 1810 121 400 Download document
19 3000 1810 95 400 Download document
19 3000 1810 95 400 Download document
21 3000 2540 121 400 Download document
21 3000 2540 121 400 Download document
15 4000 1920 128 400 Download document
15 4000 1920 128 400 Download document
19 4000 1920 101 400 Download document
19 4000 1920 101 400 Download document
21 4000 2730 130 400 Download document
21 4000 2730 130 400 Download document
15 3000 1960 131 400 Download document
15 3000 1960 131 400 Download document
19 3000 1960 103 400 Download document
19 3000 1960 103 400 Download document
21 3000 2740 130 400 Download document
21 3000 2740 130 400 Download document
15 4000 2070 138 400 Download document
15 4000 2070 138 400 Download document
19 4000 2070 109 400 Download document
19 4000 2070 109 400 Download document
21 4000 2940 140 400 Download document
21 4000 2940 140 400 Download document
15 3000 1810 121 400 Download document
15 3000 1810 121 400 Download document
19 3000 1810 95 400 Download document
19 3000 1810 95 400 Download document
21 3000 2540 121 400 Download document
21 3000 2540 121 400 Download document
15 4000 1920 128 400 Download document
15 4000 1920 128 400 Download document
19 4000 1920 101 400 Download document
19 4000 1920 101 400 Download document
21 4000 2730 130 400 Download document
21 4000 2730 130 400 Download document
25 3000 3470 139 550 Download document
25 3000 3470 139 550 Download document
29 3000 3470 120 550 Download document
29 3000 3470 120 550 Download document
40 3000 5370 134 550 Download document
40 3000 5370 134 550 Download document
25 4000 3720 149 550 Download document
25 4000 3720 149 550 Download document
29 4000 3720 128 550 Download document
29 4000 3720 128 550 Download document
40 4000 5770 144 550 Download document
40 4000 5770 144 550 Download document
25 3000 3230 129 550 Download document
25 3000 3230 129 550 Download document
29 3000 3230 111 550 Download document
29 3000 3230 111 550 Download document
40 3000 5010 125 550 Download document
40 3000 5010 125 550 Download document
25 4000 3470 139 550 Download document
25 4000 3470 139 550 Download document
29 4000 3470 120 550 Download document
29 4000 3470 120 550 Download document
40 4000 5370 134 550 Download document
40 4000 5370 134 550 Download document
25 3000 3470 139 550 Download document
25 3000 3470 139 550 Download document
29 3000 3470 120 550 Download document
29 3000 3470 120 550 Download document
40 3000 5370 134 550 Download document
40 3000 5370 134 550 Download document
25 4000 3720 149 550 Download document
25 4000 3720 149 550 Download document
29 4000 3720 128 550 Download document
29 4000 3720 128 550 Download document
40 4000 5770 144 550 Download document
40 4000 5770 144 550 Download document
25 3000 3230 129 550 Download document
25 3000 3230 129 550 Download document
29 3000 3230 111 550 Download document
29 3000 3230 111 550 Download document
40 3000 5010 125 550 Download document
40 3000 5010 125 550 Download document
25 4000 3470 139 550 Download document
25 4000 3470 139 550 Download document
29 4000 3470 120 550 Download document
29 4000 3470 120 550 Download document
40 4000 5370 134 550 Download document
40 4000 5370 134 550 Download document
46 3000 6760 147 750 Download document
46 3000 6760 147 750 Download document
50 3000 6760 135 750 Download document
50 3000 6760 135 750 Download document
63 3000 8920 142 750 Download document
63 3000 8920 142 750 Download document
46 4000 7270 158 750 Download document
46 4000 7270 158 750 Download document
50 4000 7270 145 750 Download document
50 4000 7270 145 750 Download document
63 4000 9640 153 750 Download document
63 4000 9640 153 750 Download document
46 3000 6270 136 750 Download document
46 3000 6270 136 750 Download document
50 3000 6270 125 750 Download document
50 3000 6270 125 750 Download document
63 3000 8280 131 750 Download document
63 3000 8280 131 750 Download document
46 4000 6740 147 750 Download document
46 4000 6740 147 750 Download document
50 4000 6740 135 750 Download document
50 4000 6740 135 750 Download document
63 4000 8950 142 750 Download document
63 4000 8950 142 750 Download document
46 3000 6760 147 750 Download document
46 3000 6760 147 750 Download document
50 3000 6760 135 750 Download document
50 3000 6760 135 750 Download document
63 3000 8920 142 750 Download document
63 3000 8920 142 750 Download document
46 4000 7270 158 750 Download document
46 4000 7270 158 750 Download document
50 4000 7270 145 750 Download document
50 4000 7270 145 750 Download document
63 4000 9640 153 750 Download document
63 4000 9640 153 750 Download document
46 3000 6270 136 750 Download document
46 3000 6270 136 750 Download document
50 3000 6270 125 750 Download document
50 3000 6270 125 750 Download document
63 3000 8280 131 750 Download document
63 3000 8280 131 750 Download document
46 4000 6740 147 750 Download document
46 4000 6740 147 750 Download document
50 4000 6740 135 750 Download document
50 4000 6740 135 750 Download document
63 4000 8950 142 750 Download document
63 4000 8950 142 750 Download document
