Tilia

  • Ceiling and wall mounting
  • Industry, warehouses and parking garages
  • Available in 2 lengths, energy-efficient 140 lm/W
  • On/off, DALI, ActiveAhead, Casambi
  • IP66, IK10

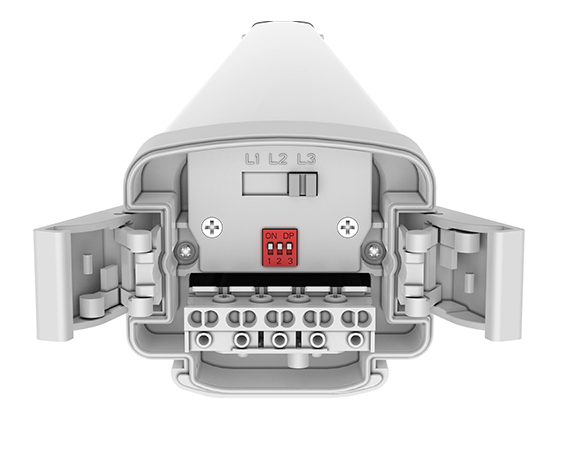

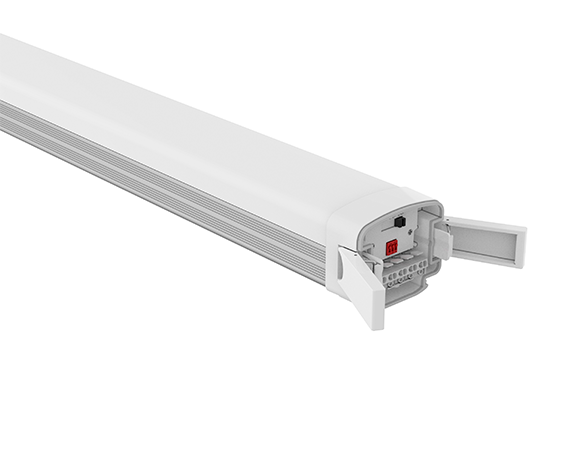

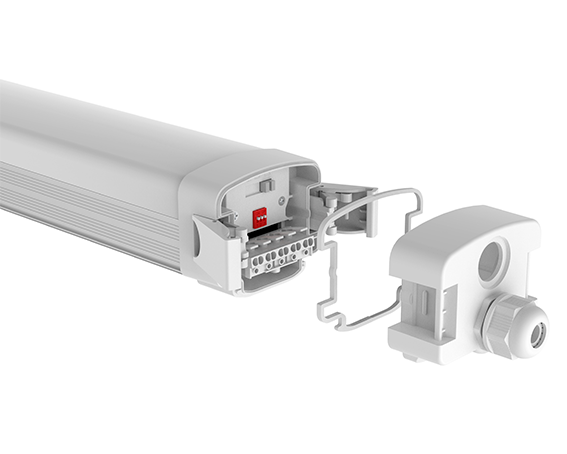

Tilia is an IP66-rated luminaire for industrial facilities, warehouses and parking garages. The luminaire housing is made from aluminium with end caps and cover in PC. Through-wiring 5 × 2.5 mm² and two cable entries at each end with two cable glands included support a range of installation requirements. The luminaire is prepared for integration with lighting control systems such as ActiveAhead and Casambi.

FAQ – Abbreviations and Common Questions

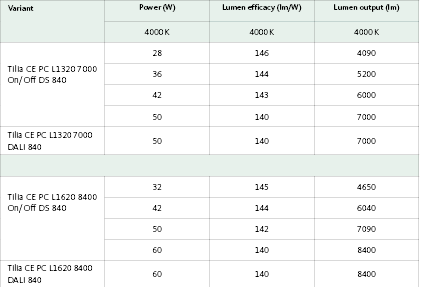

Variants

Find the product article that you are looking for.

Use the filter function below to find a specific article. Click on the article to go to the article page or save as a pdf by tick in the box and "ADD AS PDF.
