Z44 CE L1200 29W 4500 Sensor On/Off 830

Article number 51388304807
Save pdf
    • Product feature
    • Driver type On/off
    • Material of housing Aluzink coated sheet steel
    • Material of diffuser/optics Acrylic (PMMA)
    • Diffuser/optics Opal; Linear prismatic
    • Light source Integrated LED; Replaceable LED
    • Color of housing White
    • Photometric data
    • Color T (K) 3000
    • Color Rendering Index (CRI) ≥80

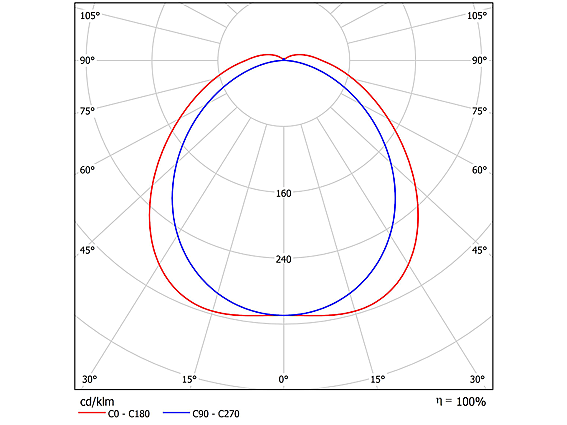

    • Light distribution Direct
    • Beam description Wide
    • Unified Glare Rating (UGR) ≤25
    • Efficacy (lm/W) 150
    • Flux (lm) 4340
    • SDCM ≤3
    • Installation data
    • Mounting Surface
    • Installation (surface) Wall
    • Cable entries 2+2
    • Connection Terminal block 5x2.5
    • Looping Available upon request
    • Through wiring Available upon request
    • Technical data
    • IP class IP44
    • IK class IK03
    • Corrosion class C4
    • Ambient temp, min (°C) -25
    • Ambient temp, max (°C) +30
    • Compliance CE; REACH
    • Light management
    • Sensor type Microwave
    • Lifetime
    • Calculated LED lifetime, L80 (h) >100 000
    • Calculated LED lifetime, L90 (h) 55,000
    • Driver lifetime (h) 100,000
    • Electrical data
    • Frequency (Hz) 50-60
    • Voltage (V) 220-240
    • Isolation Class 1
    • Power (W) 29
    • Standby power (W) 0.5
    • Qty per B16 MCB 38
    • Qty per C10 MCB 39
    • Qty per C16 MCB 64
    • Power factor ≥0.90

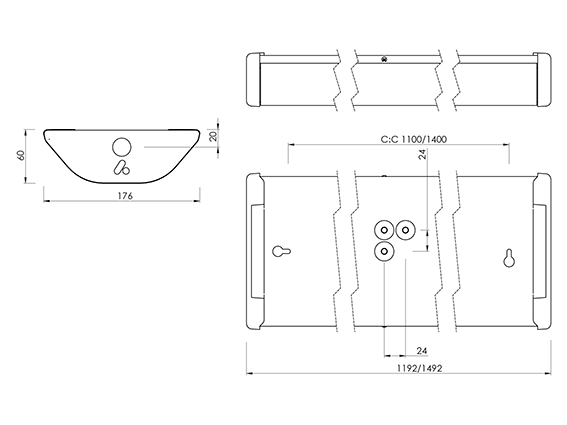

    • Measurements
    • Length (mm) 1192
    • Height/depth (mm) 60
    • Net weight (kg) 2.30
    • Width (mm) 176

Z44 is an energy-efficient IP44 luminaire for general lighting in industries with requiring protection class up to IP44. It has a high lumen output, up to 161 lm/W, and can be ordered with DALI, on/off or with different sensor and smart versions. Z44 is an affordable universal luminaire that creates an even and shadow-free light.
