Sarek EVO CE L1700 MP 12700 DALI 840

Article number 51158412720
Save pdf
    • Product feature
    • Driver type DALI-2
    • Material of housing Hot galvanized steel sheet
    • Material of diffuser/optics Acrylic (PMMA)
    • Diffuser/optics Microprismatic
    • Light source Integrated LED
    • Gtin 7333160042706

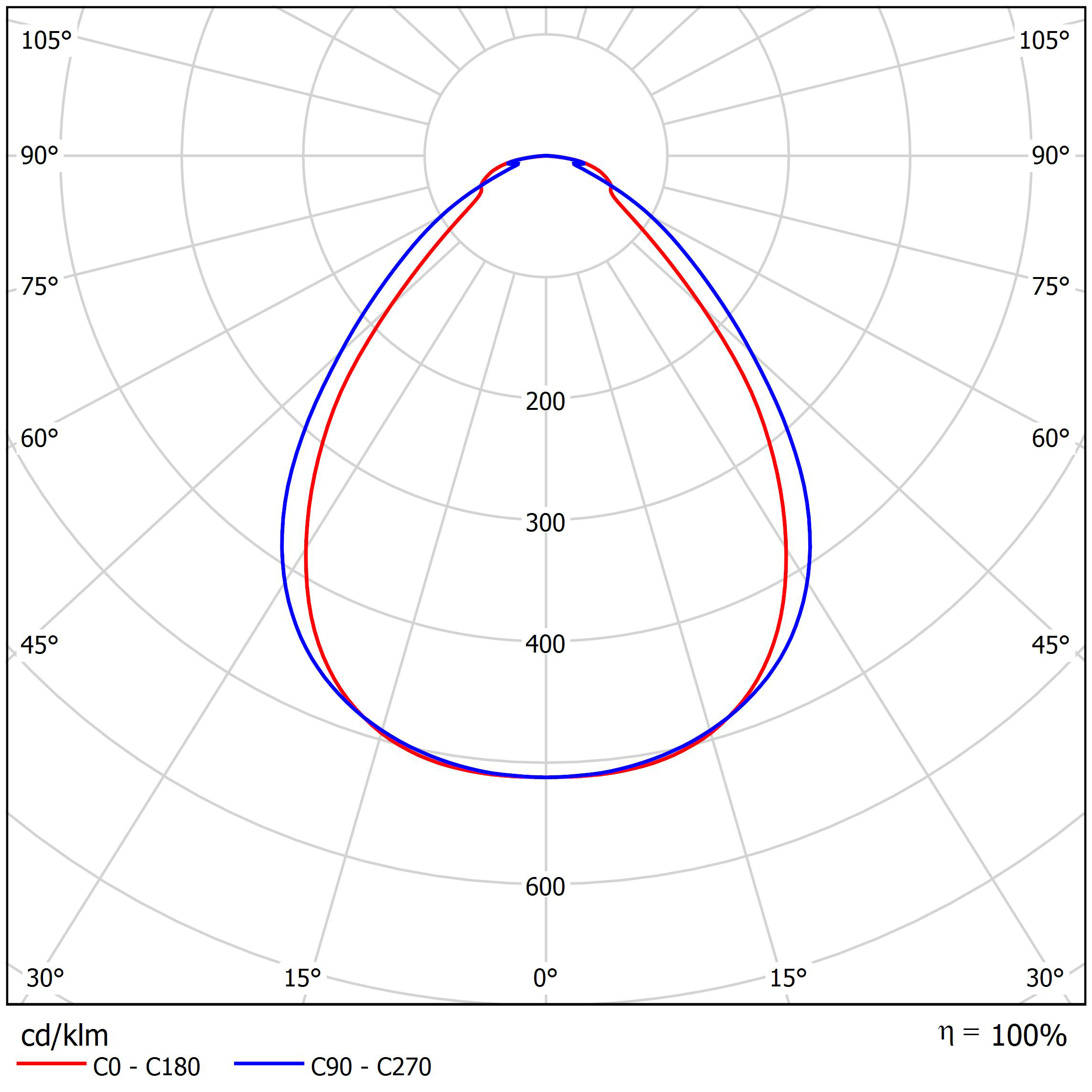

    • Photometric data
    • Color T (K) 4000
    • Color Rendering Index (CRI) ≥80
    • Beam description Medium wide
    • Efficacy (lm/W) 173
    • Flux (lm) 13180
    • SDCM ≤3
    • Installation data
    • Mounting Surface
    • Cable entries 4
    • Connection Terminal block 7x2.5
    • Looping Yes
    • Through wiring Yes
    • Through wiring cross section (mm²) 7x2.5
    • Technical data
    • IP class IP23
    • Corrosion class C3
    • Ambient temp, min (°C) -20
    • Ambient temp, max (°C) +35
    • Compliance CE; REACH; ENEC
    • Light management
    • DALI Part 251/252/253 Yes
    • Luminaire data (Part 251) Upon request
    • Lifetime
    • Calculated LED lifetime, L90 (h) >100 000
    • Driver lifetime (h) 100 000
    • Electrical data
    • Frequency (Hz) 0/50-60
    • Voltage (V) 220-240
    • Protection class Class 1
    • Power (W) 76
    • Standby power (W) 0.4
    • Qty per B16 MCB 28
    • Qty per C10 MCB 29
    • Qty per C16 MCB 47
    • Power factor ≥0.90
    • Measurements
    • Length (mm) 1730
    • Height/depth (mm) 82
    • Net weight (kg) 4.93
    • Width (mm) 99

Sarek EVO has high-quality components that provide great lighting features, long lifetime and low energy consumption. The removable optics make maintenance easier while the two-layer microprismatic optics ensure high light quality and energy efficiency. The ability to reuse existing cabling and integrate smart control systems makes it the perfect choice for sustainable installations.
