Safie RE D228 MP 2000 On/Off White CWP-2,5m

- Product feature
- Driver type On/off
- Material of housing Aluminium
- Material of diffuser/optics Polycarbonate (PC)
- Diffuser/optics Microprismatic
- Color of reflector White
- Light source Integrated LED
- Color of housing White
- RAL 9016
- Gtin 7333160036682

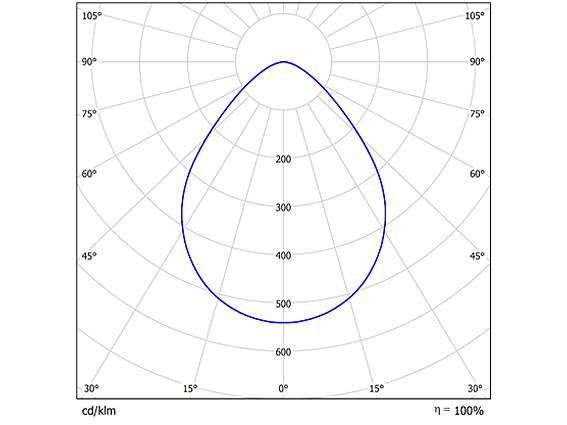

- Photometric data
- Color T (K) 3000; 4000; 5700
- Color Rendering Index (CRI) ≥80
- Beam angle (°) 85
- Beam description Medium wide
- Unified Glare Rating (UGR) ≤22
- Efficacy (lm/W) 111
- Flux (lm) 2110
- SDCM ≤3
- Installation data
- Mounting Recessed; Surface
- Cable entries 1
- Connection 2.5 m cable with plug
- Cut out (mm) 200
- Technical data
- IP class IP20; IP54
- Ambient temp, min (°C) +10
- Ambient temp, max (°C) +40
- Compliance CE; REACH
- Guarantee (years) 5
- Lifetime
- Calculated LED lifetime, L70 (h) > 100 000
- Calculated LED lifetime, L80 (h) > 100 000
- Calculated LED lifetime, L90 (h) > 100 000
- Driver lifetime (h) 100 000
- Electrical data
- Frequency (Hz) 0/50-60
- Voltage (V) 220-240
- Isolation Class 2
- Power (W) Adjustable
- Available wattages (W) 11; 13; 17; 19
- Qty per B16 MCB 45
- Qty per C10 MCB 47
- Qty per C16 MCB 75
- Power factor ≥0.90

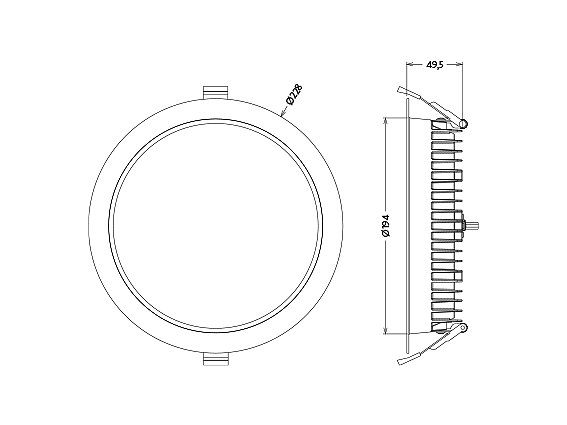

- Measurements
- Height/depth (mm) 53
- Diameter (mm) 228
- Net weight (kg) 0.5

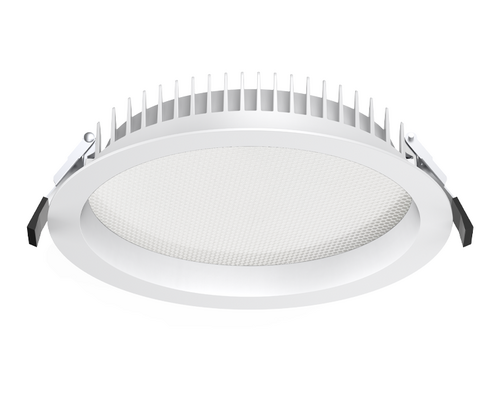

Safie MP is a recessed downlight available in three different sizes. It has a wide beam angle for general applications such as hotels, offices and hospitals. It's intended for renovations and replacement of compact fluorescent downlights. Safie MP is available as on/off or DALI.
