Ceos EVO PE L1500 MP 40/60 6000 ActiveAhead-2 930 White
Article number 29059306056
-
- Product feature
- Material of housing Aluminium (Recycled)
- Material of diffuser/optics Acrylic (PMMA)
- Diffuser/optics Microprismatic
- Light source Integrated LED
- Color of housing White
- RAL 9016
-

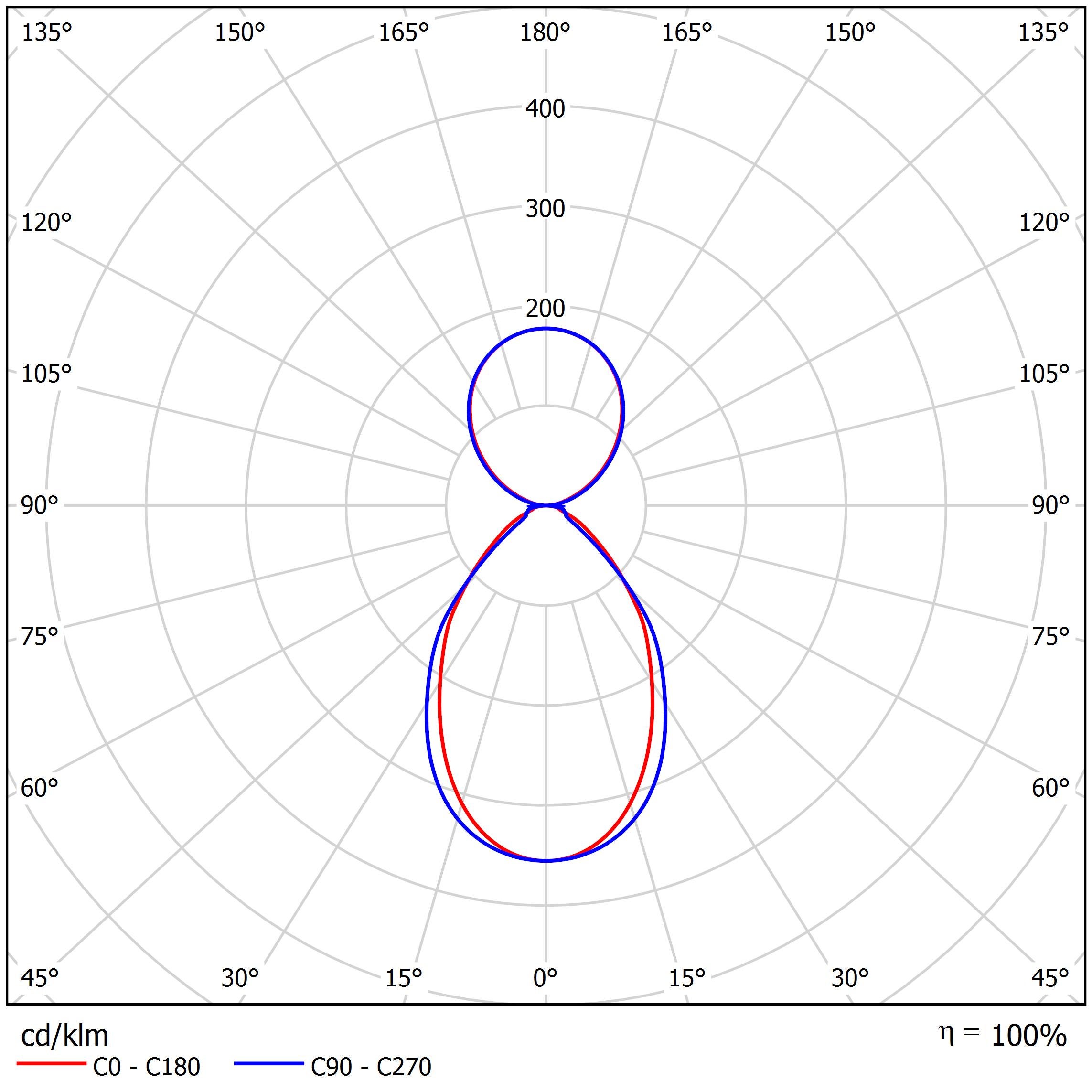

- Photometric data
- Color T (K) 3000
- Color Rendering Index (CRI) ≥90
- Light distribution Indirect/Direct
- Distribution (Up/down) 40/60
- Beam angle (°) 90
- Beam description Medium wide
- Unified Glare Rating (UGR) <19
- Efficacy (lm/W) 143
- Flux (lm) 5860
- SDCM ≤3
-
- Installation data
- Mounting Pendent
- Installation (surface) Ceiling
- Cable entries 1
- Connection Cable
- Length cable (m) 2.5
- Material cable Plastic non-PVC
-
- Technical data
- IP class IP20
- Ambient temp, min (°C) +10
- Ambient temp, max (°C) +35
- Compliance CE; REACH
- Guarantee (years) 5
-
- Light management
- Wireless controls ActiveAhead
- Technology BT Mesh
-
- Lifetime
- Calculated LED lifetime, L80 (h) >100 000
- Calculated LED lifetime, L90 (h) 100 000
- Driver lifetime (h) 100 000
-
- Electrical data
- Frequency (Hz) 0/50-60
- Voltage (V) 220-240
- Protection class Class 1
- Power (W) 41
- Standby power (W) 0.5
- Qty per B16 MCB 33
- Qty per C10 MCB 34
- Qty per C16 MCB 56
- Power factor ≥0.95
-
- Measurements
- Length (mm) 1506
- Height/depth (mm) 65
- Net weight (kg) 2.55
- Width (mm) 65
Ceos EVO is our premium solution for office lighting. The frame is made of recycled aluminium (Hydro Circal) and is available in white and black as standard. With the possibility of more customization and an adjustable ratio between indirect and direct light, where some versions are individually adjustable, the workplace lighting can be optimized for all needs without compromising on design or function.
